Crossbow 5G - Perfect Antenna for Routers
Availablity: Out of Stock

Crossbow 5G - Perfect Antenna for Routers

R 2,950.00Incl. VAT
  • Perfect Antenna for Routers
  • Band range covers 617 MHz to 3800 MHz
  • High gain performance delivering up to 11dBi
  • Compact design allows for pole or wall mounting
  • Wideband 2x2 MIMO design
  • A backwards-compatible (2G/3G/4G/LTE) 5G-ready antenna
  • Optimized for commercial M2M and IoT communications solutions
Our expert team is available at 011 749 3085 to provide you with personalised recommendations and hassle-free installation advice!

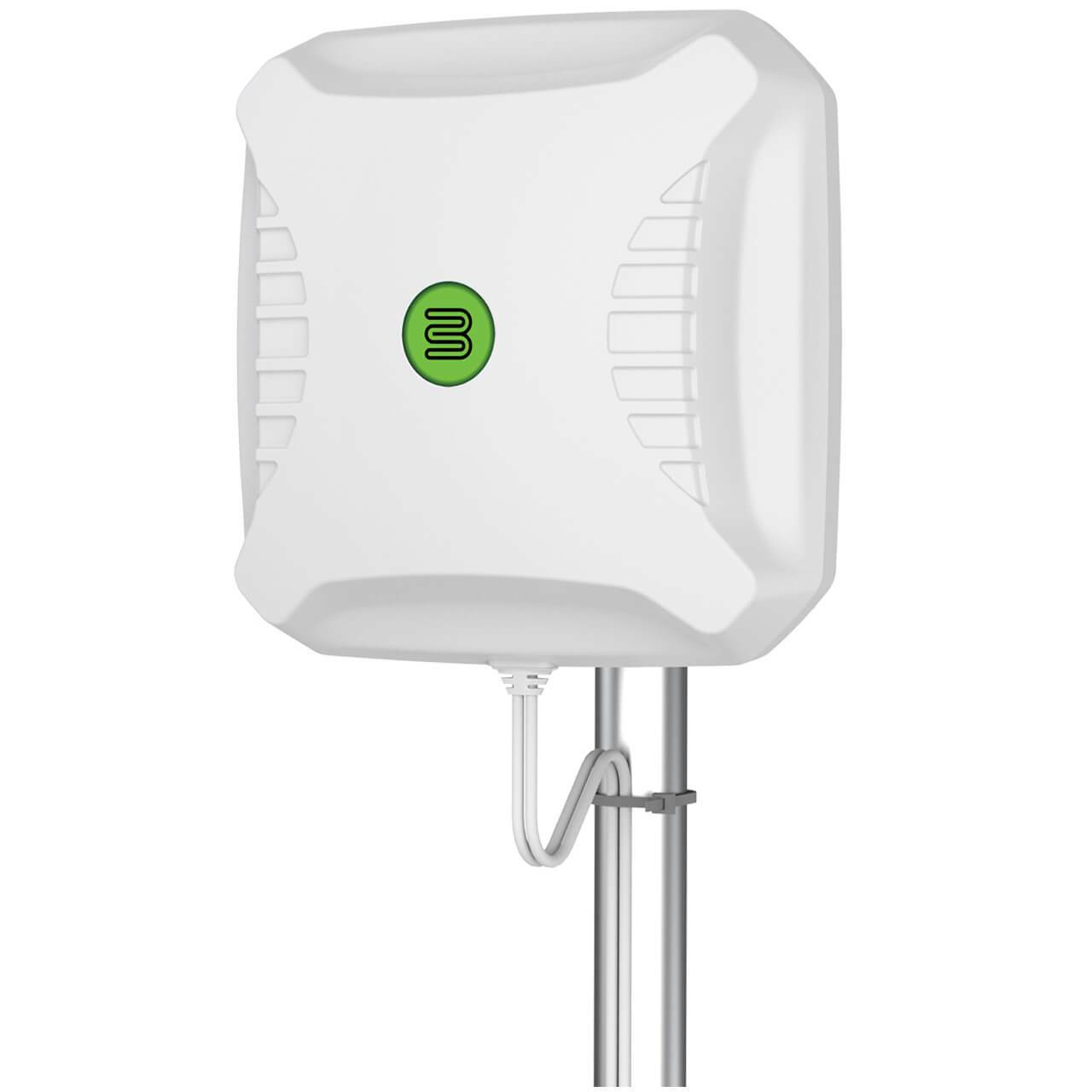

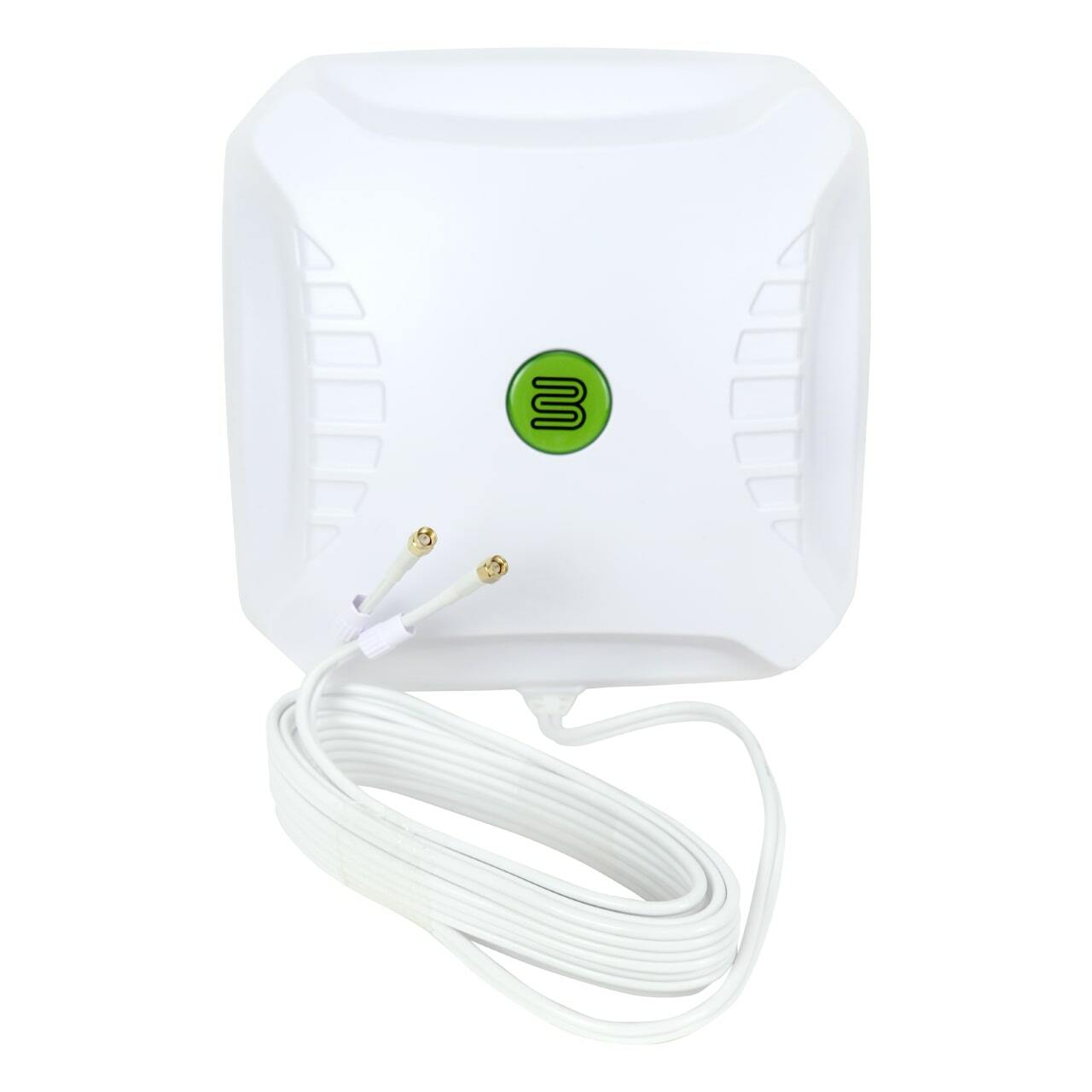

Cross-Polarized, High Gain, Uni-Directional LTE/5G, Hotspot/Router Cellular Antenna

If you’re looking for high- gain, an easy-install, future-proofed, and versatile, look no further than Crossbow 5G.

This antenna performs exceptionally well in the following frequency bands: 698 – 960MHz, 1700 – 2170MHz, 2300 – 2700MHz & 3400 – 3800MHz.

The Crossbow is our 5G/4G LTE MIMO cellular hotspot antenna, optimized for cellular networks. Specifically, the Crossbow is a Cross Polarized, cellular band, 2×2 MIMO antenna.

  • New advanced metamaterial technology
  • Exceptional performance over the main 4G/5G bands
  • High Gain for the antenna size
  • Backwards compatible 2G/3G/4G/LTE antenna (5G Ready)
  • Two cross polarised antennas in one enclosure for optimal LTE performance
  • IP65 weather/dust and vandal-resistant enclosure.

Cross-Polarized, High Gain, Uni-Directional LTE/5G, Hotspot/Router Cellular Antenna

If you’re looking for high- gain, an easy-install, future-proofed, and versatile, look no further than Crossbow 5G.

This antenna performs exceptionally well in the following frequency bands: 698 – 960MHz, 1700 – 2170MHz, 2300 – 2700MHz & 3400 – 3800MHz.

The Crossbow is our 5G/4G LTE MIMO cellular hotspot antenna, optimized for cellular networks. Specifically, the Crossbow is a Cross Polarized, cellular band, 2×2 MIMO antenna.

  • New advanced metamaterial technology
  • Exceptional performance over the main 4G/5G bands
  • High Gain for the antenna size
  • Backwards compatible 2G/3G/4G/LTE antenna (5G Ready)
  • Two cross polarised antennas in one enclosure for optimal LTE performance
  • IP65 weather/dust and vandal-resistant enclosure.

Frequencies & Gains

Frequency Range 617-800 MHz 806-960 MHz 1710-2700 MHz 3300-4000 MHz
Gain +4.5 dB +6 dB +7.5 dB +6 dB
Polarization Vertical
Directional Beam 65-80°
VSWR <=150
Front-to-Back Ratio >12, >5
Input Power, maximum 50 watt
Impedence 50 ohm
Connector Type N-Female
Dimensions 175 x 164 x 63 mm
Weight, without Mounting Kit 0.8 kg
Radome Material and Color ABS, White
Mounting Kit On-wall/Suction Cup/Pole Mount
Operational Temperature -55 ~ 60 C, -67 ~ 140 F


Download Spec Sheet
