Puck-2 BT151533
Availablity: Out of Stock

Puck-2

R 856.90Incl. VAT
  • 2-in-1 LTE high performance multi frequency
  • 2G/3G/4G/LTE/5G antenna
  • Wideband – covers wide frequency band, incl. 3.5 GHz CBRS band
  • Robust, vandal resistant and waterproof (IP 68)
  • Ideal for transportation, marine and IoT/M2M use
  • Ultra-versatile mounting options for easy installation
    Our expert team is available at 011 749 3085 to provide you with personalised recommendations and hassle-free installation advice!

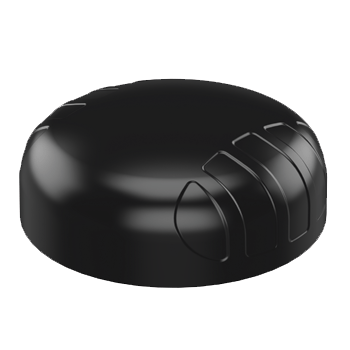

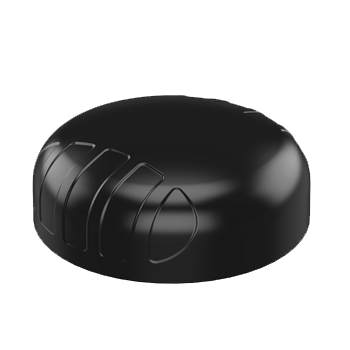

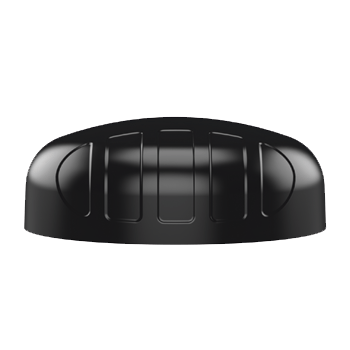

    Bolton Technical's new Puck range offers a small profile antenna for use in the IoT/M2M, Smart Meter, Smart Utilities, Transportation, Marine and the Agricultural/Farming markets. The Puck consists of a 2-in-1 antenna system within a single housing, featuring 2×2 MIMO LTE antennas (for 2G/3G/4G) that cover the 698 to 3800 MHz band which includes the most popular international LTE bands. The Puck exceeds the performance of many competitors due to the attention to design of this high-performance antenna. The radiation patterns of all radiating elements provide an excellent balance between omnidirectionality, pattern diversity and good radiation abilities at the desired elevation which is often overlooked in such a small size antenna. Despite its small size, this antenna provides excellent performance especially at the higher frequency bands where performance is critical for LTE throughput and connection stability. This antenna is designed so that both the LTE ports are connected to the router/device to ensure the best performance. Please see other derivatives of the Puck range that are more suitable for a SISO application.


    Nugget Mimo


    Antenna Mimo

    Bolton Technical offers a range of antennas that are designed specifically for marine environments where performance, quality, styling and weather protection is critical. This range of antennas is aimed at various types of marine applications, from superyachts, commercial vessels, (river-) cruise ships, private yachts, towing-vessels and speedboats. These antennas can also be used in other applications with harsh environments such as harbour buildings, buoys, pontoons and smaller boats. Other areas where these models of the Marine antenna solutions will be ideal include; anywhere along the coastline, lakesides and other high humid areas.

    The marine range of antennas are designed to perform at high standards, operate over a wide bandwidth and are made with materials of exceptional quality. This range is targeted at LTE and 5G reception at sea, as well as antennas to provide dual-band WiFi distribution at sea. Many of the marine antennas are 5G Ready, where they cover the 450MHz LTE/CDMA bands as well as the 3.5GHz LTE/CBRS bands which are starting to become available internationally. With these antennas, the yacht owner will not need to replace or upgrade their antennas to benefit from this new technology and frequency bands.

    Bolton Technical's new Puck range offers a small profile antenna for use in the IoT/M2M, Smart Meter, Smart Utilities, Transportation, Marine and the Agricultural/Farming markets. The Puck consists of a 2-in-1 antenna system within a single housing, featuring 2×2 MIMO LTE antennas (for 2G/3G/4G) that cover the 698 to 3800 MHz band which includes the most popular international LTE bands. The Puck exceeds the performance of many competitors due to the attention to design of this high-performance antenna. The radiation patterns of all radiating elements provide an excellent balance between omnidirectionality, pattern diversity and good radiation abilities at the desired elevation which is often overlooked in such a small size antenna. Despite its small size, this antenna provides excellent performance especially at the higher frequency bands where performance is critical for LTE throughput and connection stability. This antenna is designed so that both the LTE ports are connected to the router/device to ensure the best performance. Please see other derivatives of the Puck range that are more suitable for a SISO application.


    Nugget Mimo


    Antenna Mimo

    Bolton Technical offers a range of antennas that are designed specifically for marine environments where performance, quality, styling and weather protection is critical. This range of antennas is aimed at various types of marine applications, from superyachts, commercial vessels, (river-) cruise ships, private yachts, towing-vessels and speedboats. These antennas can also be used in other applications with harsh environments such as harbour buildings, buoys, pontoons and smaller boats. Other areas where these models of the Marine antenna solutions will be ideal include; anywhere along the coastline, lakesides and other high humid areas.

    The marine range of antennas are designed to perform at high standards, operate over a wide bandwidth and are made with materials of exceptional quality. This range is targeted at LTE and 5G reception at sea, as well as antennas to provide dual-band WiFi distribution at sea. Many of the marine antennas are 5G Ready, where they cover the 450MHz LTE/CDMA bands as well as the 3.5GHz LTE/CBRS bands which are starting to become available internationally. With these antennas, the yacht owner will not need to replace or upgrade their antennas to benefit from this new technology and frequency bands.

    Frequencies & Gains

    698-960 MHz -1 dB
    1700-2700 MHz +6.0 dB



    Impedance 50 Ohm
    Feed power handling: 10 W
    Connectors N-Female
    Puck 2 Antenna Spec Sheet

    Download Spec Sheet
