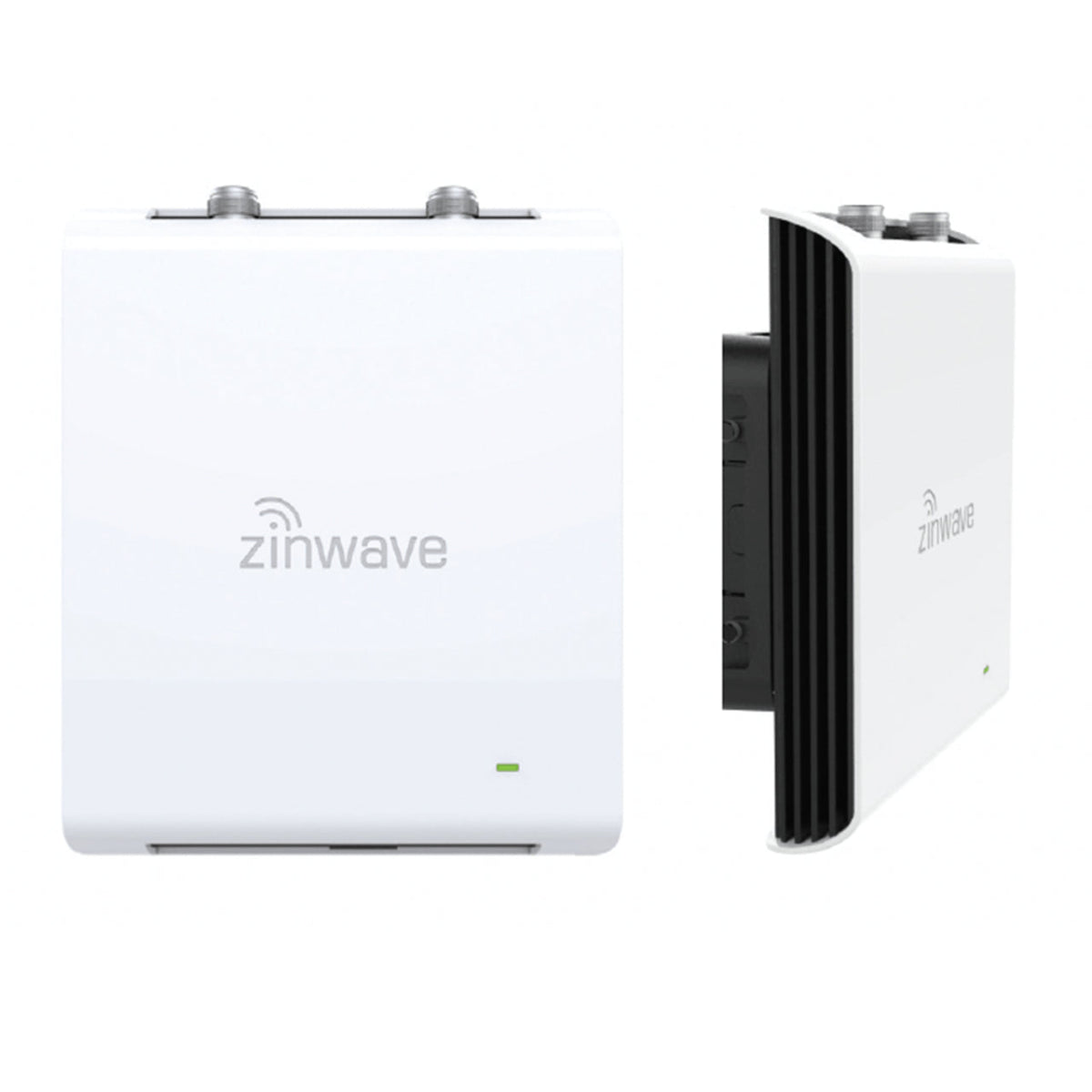

Zinwave Unitivity 5000 Low-Band Remote Unit
305-1007
![]()
![]()
Availablity:
In stock
Zinwave Unitivity 5000 Low-Band Remote Unit
- High Power Output: 25 dBm
- Wide Frequency Coverage: 150-2700 MHz
- Versatile Compatibility: Supports multiple technologies
- Easy Installation: Lightweight and compact
- Reliable Performance: Patented wide band technology
Our expert team is available at 011 749 3085 to provide you with personalised recommendations and hassle-free installation advice!
Unitivity 5000 Low-Band Remote Unit: For Streamlined Wireless Connectivity
The low-band remote unit is designed to enhance wireless connectivity by providing high-power output, covering a wide range of frequencies and technologies from 150 MHz to 2700 MHz. It offers simplified installation with lightweight construction, supports both TDD and FDD simultaneously, and boasts best-in-class reliability.
Key Features and Specifications:
- 25 dBm composite output power
- Lightweight and easy installation
- Simple fiber cabling with centralized DC power option
- Low power consumption
- Patented wideband technology
- Covers frequencies and technologies from 150-2700 MHz
- Compatible with 5GNR, LTE, GSM, P25, and TETRA
- Supports both TDD and FDD simultaneously
- Best-in-class reliability
For more information and inquiries, call us at JHB 011 749 3085 or CPT 021 879 3057 or email sales@boltontechnical.co.za to explore our comprehensive range of connectivity solutions tailored for South African networks. Empower your infrastructure with reliable, high-performance connectivity solutions from ZINWAVE.
Unitivity 5000 Low-Band Remote Unit: For Streamlined Wireless Connectivity
The low-band remote unit is designed to enhance wireless connectivity by providing high-power output, covering a wide range of frequencies and technologies from 150 MHz to 2700 MHz. It offers simplified installation with lightweight construction, supports both TDD and FDD simultaneously, and boasts best-in-class reliability.
Key Features and Specifications:
- 25 dBm composite output power
- Lightweight and easy installation
- Simple fiber cabling with centralized DC power option
- Low power consumption
- Patented wideband technology
- Covers frequencies and technologies from 150-2700 MHz
- Compatible with 5GNR, LTE, GSM, P25, and TETRA
- Supports both TDD and FDD simultaneously
- Best-in-class reliability
For more information and inquiries, call us at JHB 011 749 3085 or CPT 021 879 3057 or email sales@boltontechnical.co.za to explore our comprehensive range of connectivity solutions tailored for South African networks. Empower your infrastructure with reliable, high-performance connectivity solutions from ZINWAVE.
Unit Specifications
| POWER CONNECTIVITY | 48 V DC POWER INPUT VIA PHOENIX 5.08 mm 2-WAY CONNECTOR; AWG 12-24 |
| FIBRE CONNECTIVITY | SC/APC DUPLEX |
| ANTENNA CONNECTIVITY | SIMPLEX N-FEMALE CONNECTORS (TX AND RX) |
| OTHER CONNECTIVITY | ALARM RELAY: PHOENIX 5.08 mm 3-WAY |
| DIMENSIONS W/D/H (mm) | 206 x 253 x 54.8 |
| WEIGHT | 2.8 Kg |
| ELECTRICAL DEPENDING ON CONFIGURATION | 48 V DC / 0.5 A / 24 W (82 BTU/HR) |
| OPERATING TEMP AMBIENT NON-CONDENSING | -5 TO +50 °C NOTE: -5 to +60C WITH LESS THAN 1 dB DEGRADATION |
Unit Parameters
| TYPICAL | MAX | UNIT | NOTES | |
| NOISE FIGURE | -- | 8 | dB | AT MAXIMUM RU GAIN |
| RF OUTPUT POWER | -- | +24/ +22 dBm | dBm | COMP DL PWR [FCC/ CE] <1500MHz +21/+19 dBm [FCC/CE] |
| BROADBAND NOISE EMISSION | -114 | -- | dBm/Hz | AT MAXIMUM TRANSMIT POWER |
| SPURIOUS EMISSIONS | -- | -36 / -30 | dBm | 9 kHz-1 GHz (100 kHz BW) / 1 GHz-12 GHz (1 MHz BW) |
| CROSS-MODULATION EMISSIONS | -- | -60 | dBc | TX EMISSIONS IN PRESENCE OF WIDEBAND SIGNAL |
| REMOTE UNIT P1 dB |
+32 |
-- | dBm | |
| OIP3 | 45 | -- | dBm | AT MAXIMUM RU TRANSMIT POWER |
| OIP2 | 60 | -- | dBm | AT MAXIMUM RU TRANSMIT POWER |
| OPTICAL TRANSMIT POWER | -- | 8 | mW | AUTO-CONFIGURED |
| OPTICAL RECEIVE POWER | -- | 10 | mW |
Standards & Approvals
| AFRICA | ICASA APPROVED |
| EUROPE | CE MARKED FOR RADIO EQUIPMENT DIRECTIVE 2014/53/EU AND ROHS DIRECTIVES 2011/65/EC |
| USA FCC | FCC FCC CERTIFIED |
| CANADA | INDUSTRY CANADA CERTIFIED |
| SAFETY | IEC 60950-1; EN 60950-1; UL60950-1; UL2043, UL LISTED-E486578 |
| LASER SAFETY | IEC 60825-1:2007 |
